Laserliner Quadrum Compact GT M300S Dreh-Ebene 515 nm (< 1 mW)
Vollautomatischer Rotationslaser mit grüner Lasertechnologie mit Leichtstativ 150 cm, Teleskop-Nivellierlatte 4 m und Laserempfänger

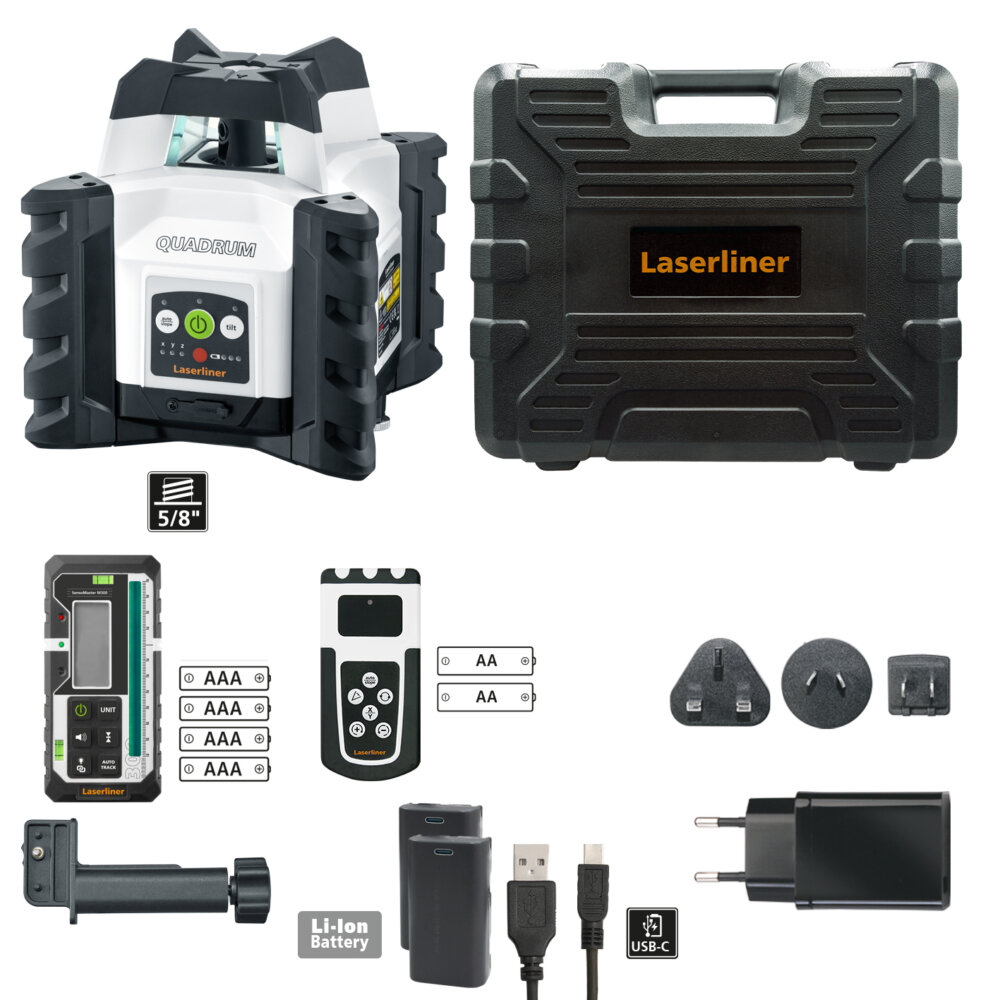

Quadrum Compact GT M300 S

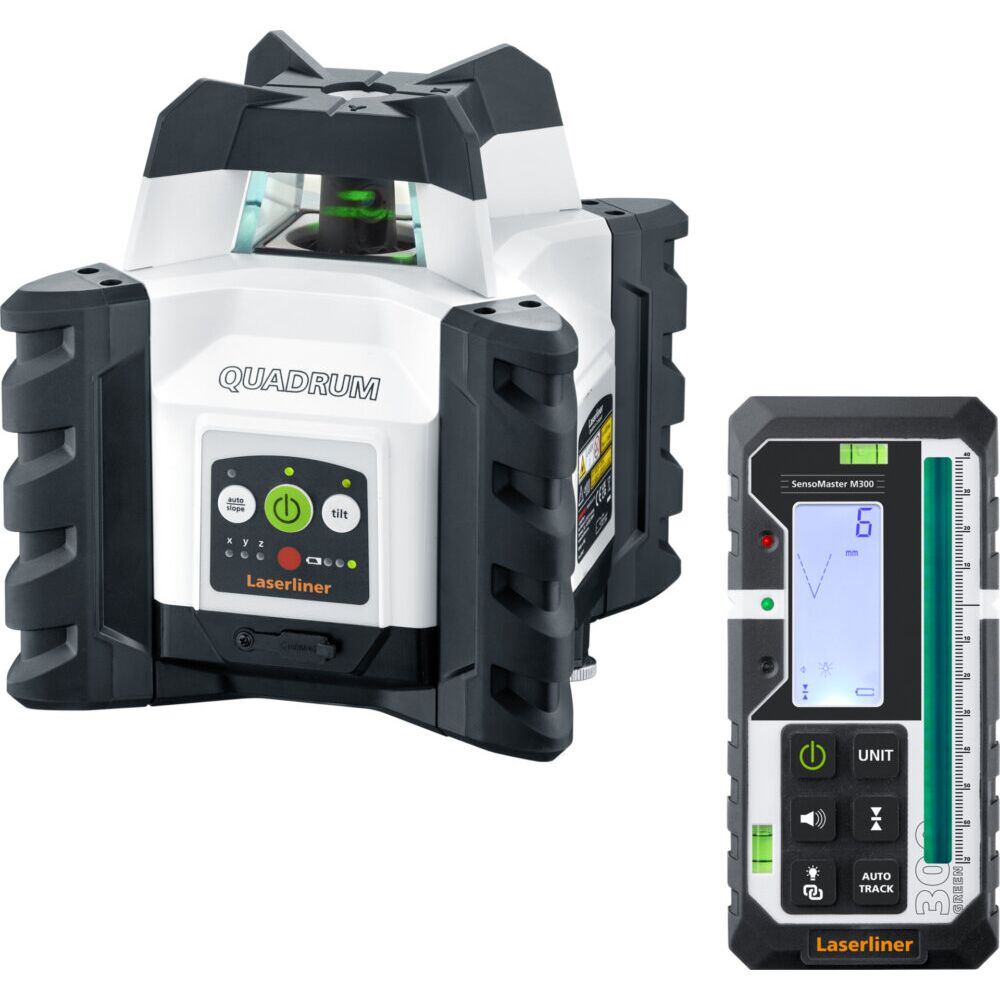

This fully automatic and extremely easy-to-use rotary laser is ideal for precise alignment work in the horizontal and vertical planes. Thanks to green laser technology, it offers excellent visibility. The integrated 5/8″ thread on the side of the housing allows for tripod mounting, enabling the laser to be positioned for precise vertical alignment. The plumb points projected above and below serve as a reliable reference to ensure the horizontal plane and plumb of a foundation.
Tracking function (X-axis only)
With the tracking function, the rotary laser aligns itself with the millimeter receiver. The receiver then automatically controls the laser beam to the zero position via radio transmission. The tracking function can be used to align a vertical plane, for example, to install a room divider. It also makes horizontal leveling easier, faster, and more accurate in a variety of applications, such as patio and exterior work or foundation preparation. This is particularly helpful for projects requiring high precision and efficiency.
Aluminum lightweight tripod 165 cm
This lightweight aluminum tripod with a milled base features a carrying strap and a hook for attaching a plumb bob. The working height is adjustable from 95 cm to 165 cm.
With 5/8” thread adapter.
Flexi-measuring stick
The ideal measuring rod for all rotary lasers. Direct reading of height differences without calculation
. Highly recommended for all ground height measurements. No standard measuring rod can compare. Plus/minus scale with mm graduations. With quick-release clamp (Flexi-Silder).
